ATpV Ver1.0
All Terrain photoVore
One of my more capable creations, definitely worth making a web page for it!
Printer tractor mechanism.

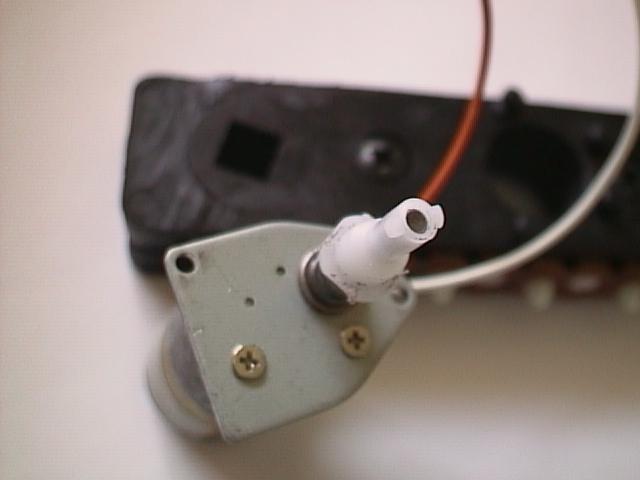

BG Micro motors.
???
Breadboard.
???
???
Solarcells One on top, one on bottom. ?Germanium? diodes. 1.0F 5.5V cap. 3 mins avg.
Wilf Rigter, Ben Hitchcock, Darrell Johnson. c=.01uF r=56K pot=100K diodes=1N4148 74HC240
4 series diodes | set | 4.95V |
reset | 3.30V |
5 series diodes | set | 4.95V |
reset | 4.27V |
Current Draw | No motors | With motors |
Min (steady state) | 56uA | 25mA |
Max (HLO Oscillation) | 1.05mA | 55mA |
References:
Wilf Rigter = New
photovore circuit
Wilf Rigter = Re: Single
240 photovore.
Darrell Johnson = SE / alf
circuit variation
Ben Hitchcock =
Alf
